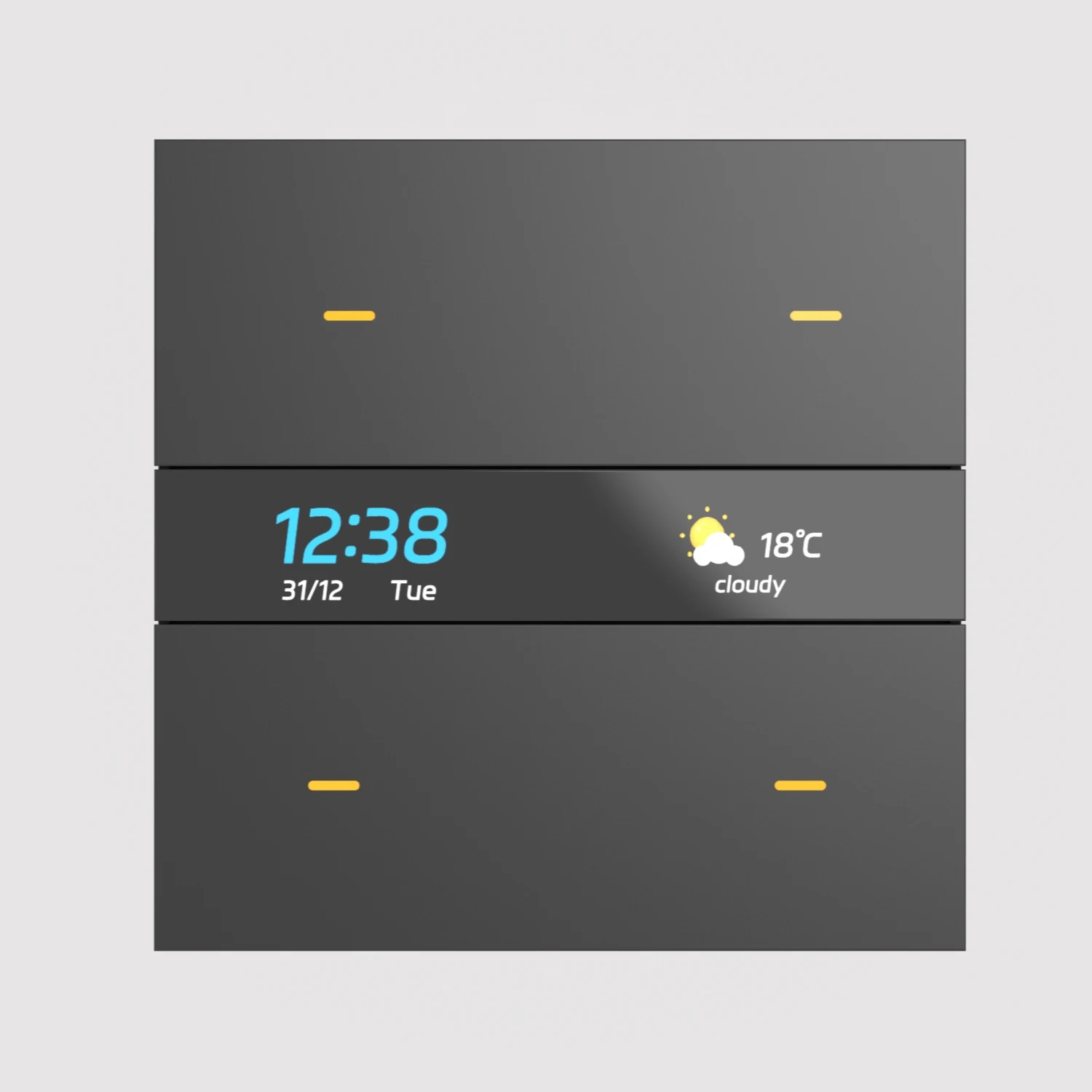

M8Pro smart switch HD weather/clock display, 4 programmable keys

Product Features & Application Scenarios

• 86 In-wall concealed structure, easy installation mode, no need to remodel the wall, any match

• Smart home interconnection, scenario mode, device automation, remote APP control.

• Easily achieve touch on the lights, curtains, air conditioning, and other intelligent equipment precision control, no hands, compatible with some of the graffiti ecological equipment.

• Custom linkage scene, can quickly switch scene mode.

Parameter Configuration

• System: RTOS

• Screen: 0.99 inches, 80*160 resolution

• Relay: 4 channels; single channel less than or equal to 500W

• Electricity supply: AC 110V-220V(50HZ)

• Zigbee: 802.15.4 PHY/MAC Zigbee network protocol stack

• RS485: Half-duplex 3.81MM interface terminal (reserved interface)

• Housings: ABS+PC, Zigbee 802.15.4 PHY/MAC Zigbee network protocol stack

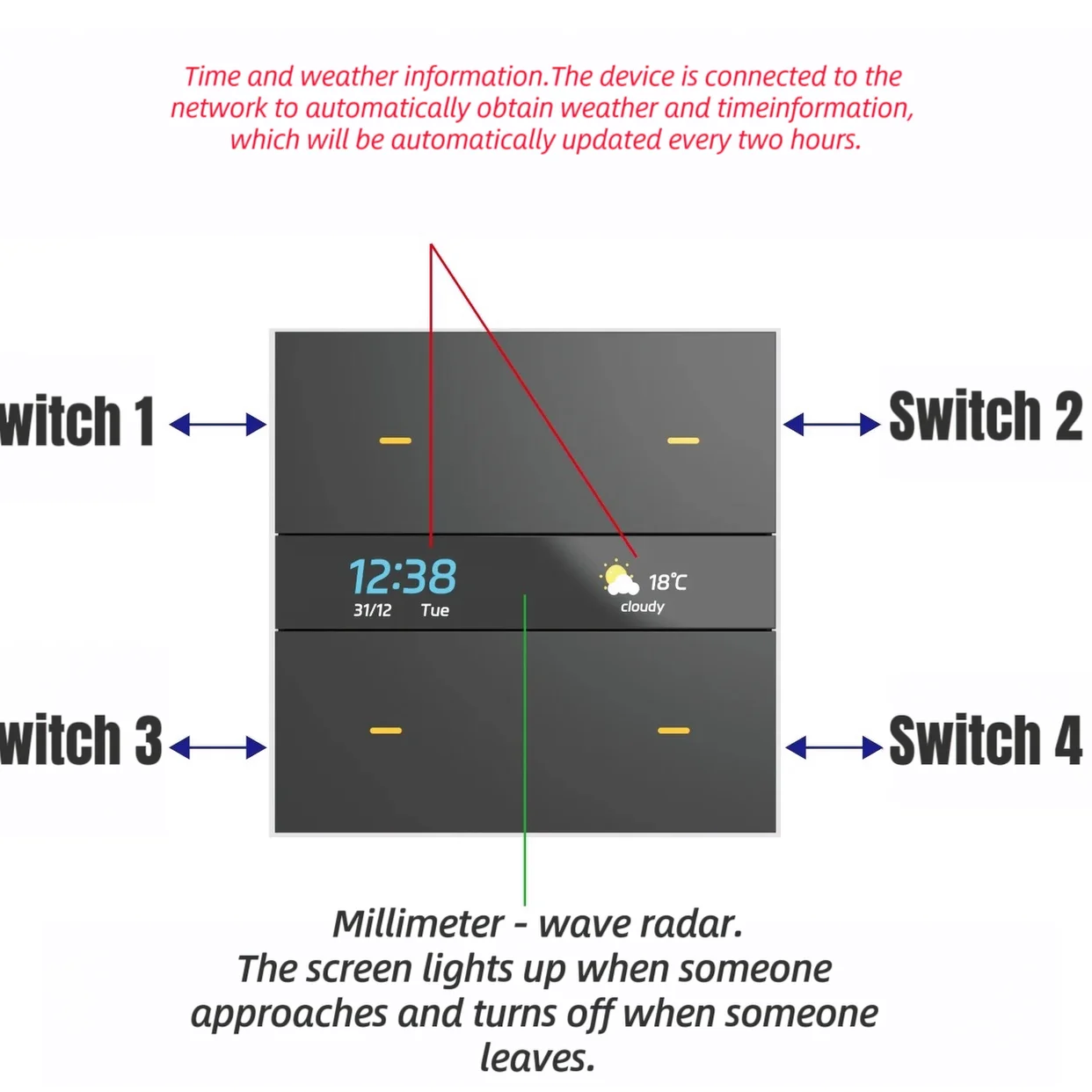

Functional Support

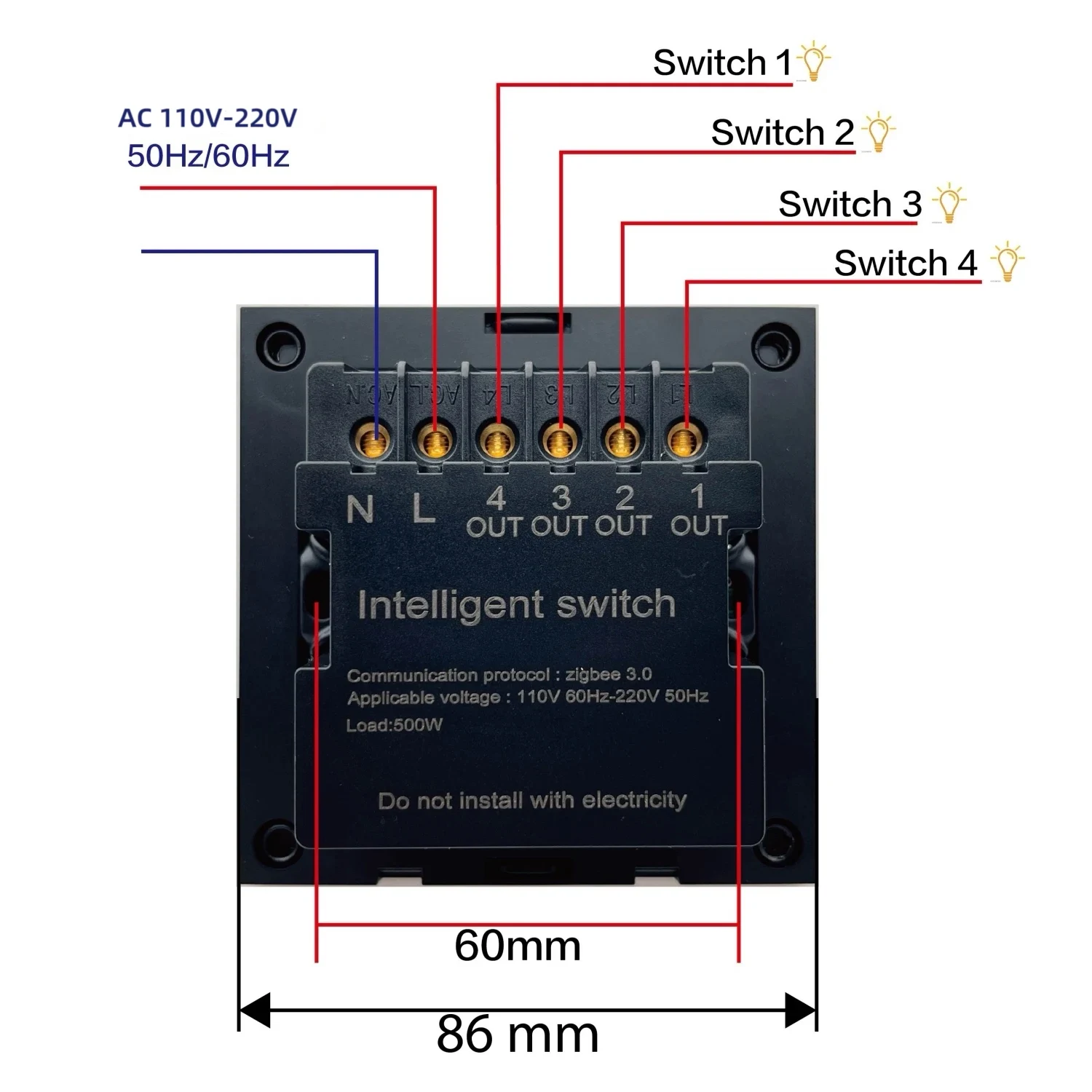

• Local switch: Support local 4-way switch, can be used for room lighting wiring use, such as living room lights, bookcase lights, etc.
